Description

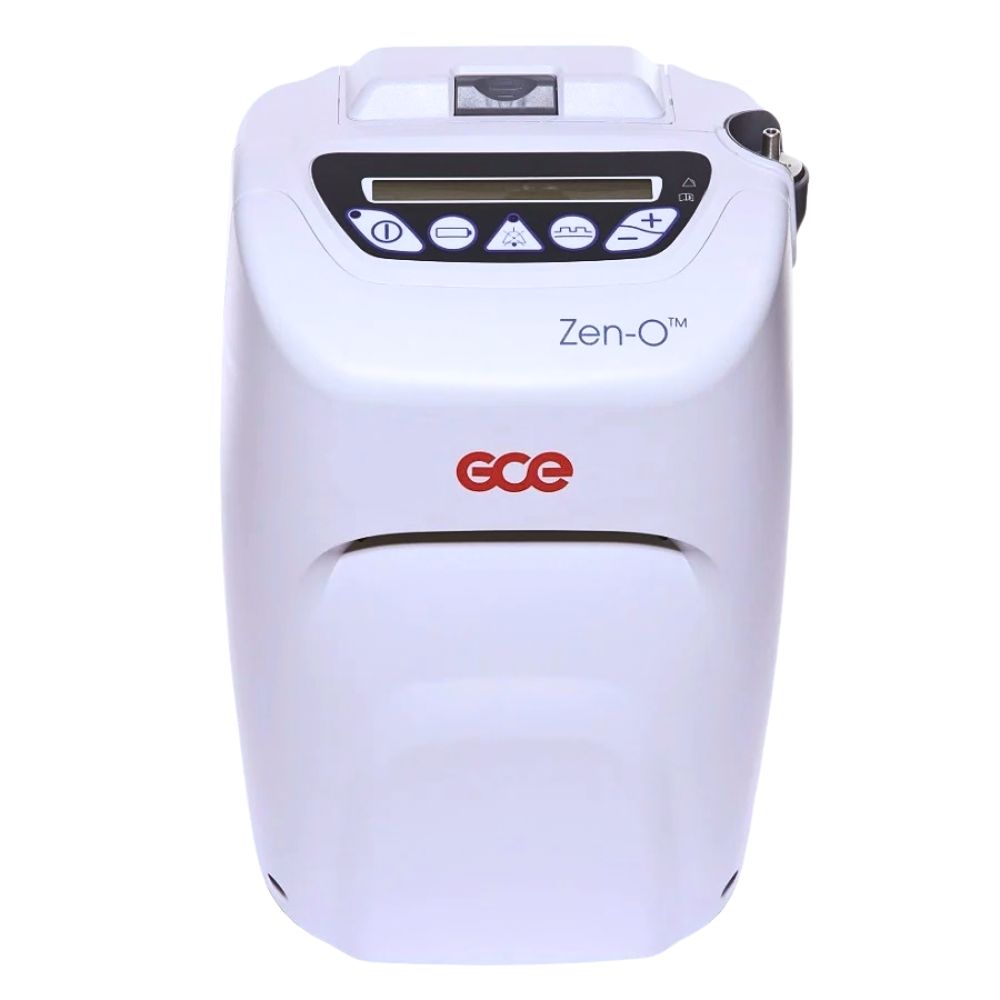

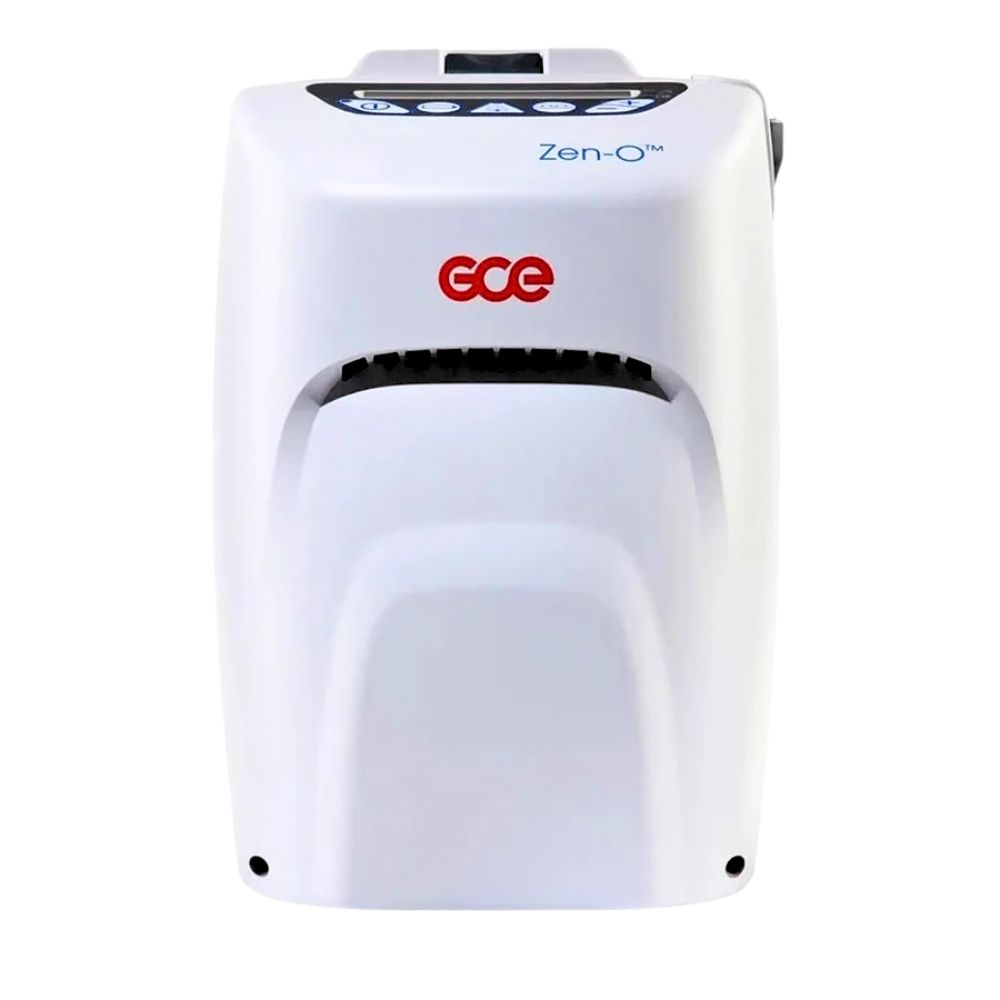

Zen-O™ is a portable oxygen concentrator with pulse and continuous oxygen delivery modes for active patients requiring oxygen therapy.
Zen-O™ portable oxygen concentrator is designed to enable patients with respiratory disorders such as chronic obstructive pulmonary disease (COPD).
Zen-O™ weighs just 4.66 kg and can deliver up to 2 litres per minute of oxygen in either pulse or continuous flow.
Zen-O’s is designed with a field-replaceable sieve bed. The sieve bed is an important part of the device and enables Zen-O™ to produce oxygen. Over time and depending on operating conditions the sieve bed may need to be replaced.
Zen-O™ features breath sensitivity and Rate Response Therapy™ (RRT) that automatically adjusts to the patient‘s demands.
Specifications
Size (WxDxH) - 212 mm x 168 mm x 313 mm, (8.3" x 6.6" x 12.3")
Weight - 4,66 kg (10.27 lbs) with one 12 cell battery
Power Requirements - AC adaptor: 100-240 V AC (+/- 10 %), 50 - 60 Hz in, 24 V, 6.25A out, DC adaptor: 11.5 - 16 V DC in, 19 V, 7.9A out
Purity - 87 % - 96 % at all settings
Maximum Oxygen Discharge Pressure - 20.5 psi
Inspiratory Trigger Sensitivity - -0.12 cm/H2O
Humidity Range - 5 % to 93 % +/- 2 % non-condensing
Operating Altitude - 0´to 13,000´(0 m to 4,000 m)
Operating Temperature - 5°C (41°F) and 40°C (104°F)
Storage Temperature - -20°C (-4°F) and 60°C (140°F)
Setting - Adjustable in 0.5 increments from 1.0 to 6.0 in pulse mode and from 0.5 to 2.0 in continuous mode
Noise Level - 38 dB(A) tested to Prüfmethode 14-1 03/2007
MDS-Hi and 42 dB(A) tested to ISO 3744*
*At pulse setting 2.
*At pulse setting 2.
Alarm Types - Low oxygen purity, No breath detected, Low battery and Service required

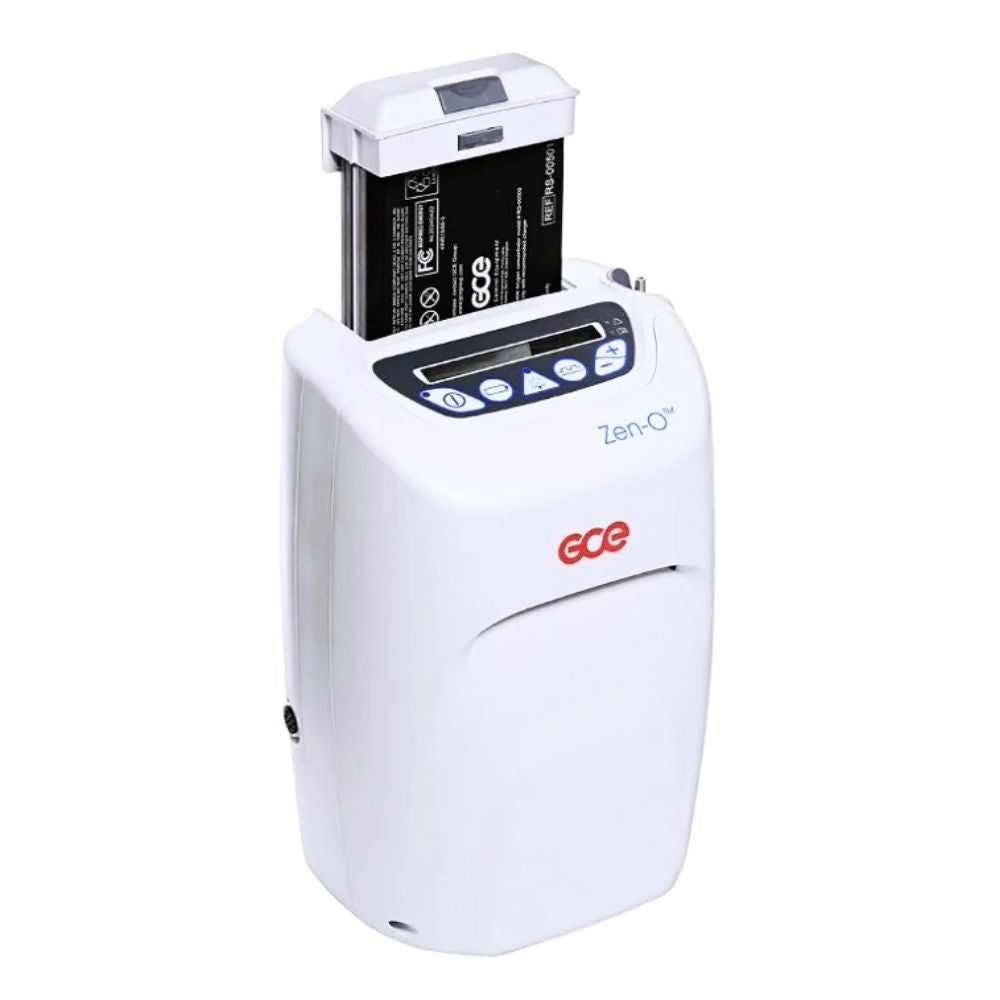

Battery Duration - Up to 4 hours with a single battery or 8 hours
with 2 batteries at 18 BPM* (*At pulse setting 2)
